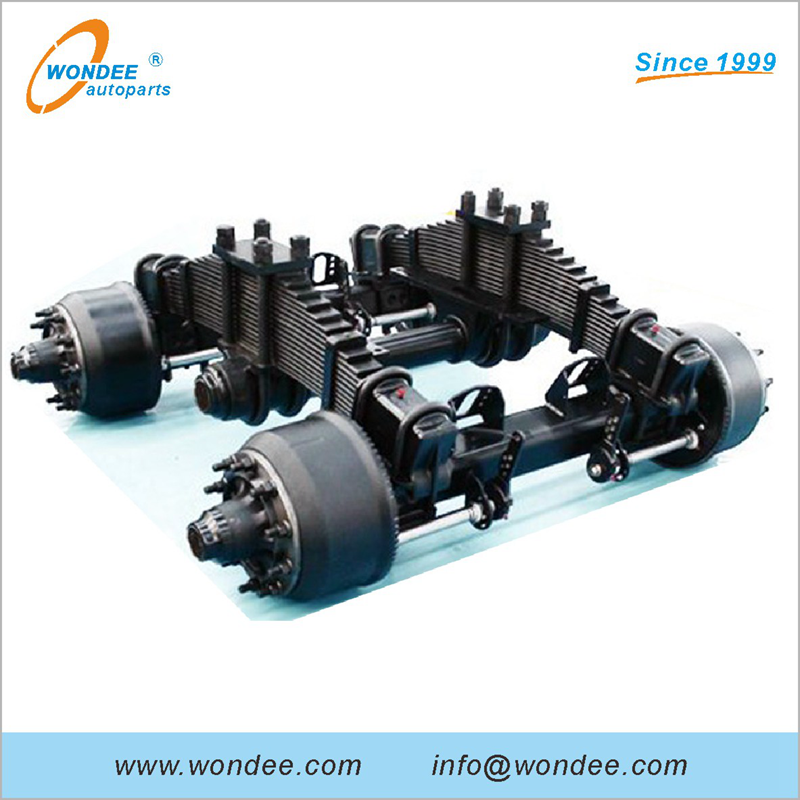

24T 28T 32T 36T Germany Drum Type Bogie Suspension with Low Mounting Plate

Description ApplicationsA semi-trailer suspension is an important part connecting the traveling device and the frame of the semi-trailer.All forces are all transmitted through the suspension system. And the suspension reduces the impact of harsh roads on the vehicle, plays a shock absorption effect, and improves the ride comfort of the vehicle.Semi-trailer suspensions are widely applied to skeletal trailers, lowbed trailers, flatbed trailers, dump trailers, car transport trailers, oil tank trailers, van trailers, full trailers, wood transport trailers, agricultrucal vehicles, etc. Classification of suspension indlude German series suspensions, American series suspensions, bogie/boogie suspension series, air suspension series, rigid suspension series, YORK suspensions, ROR suspensions, HENRED suspensions, semi-trailer suspensions, trailer suspensions and agricultural series, etc.For more about WONDEE Suspensions Project, please click： FeaturesQC management systemImplementing IATF 16949-2016Services quality management systemImplementing ISO 9001-2015Warranty18 months since shipping dateQuality testing passedAn independent lab in ChinaRaw material for suspensionsQ235 from China's TOP-3 steel mills can achieve a longer life under higher loadsSteel plate cutting byCNC Plasma Cutting MachinesPress forming by40-800 ton hydraulic press machines with hundreds of precision moldsHanger welding byAutomatic CNC welding robots/lines with hundreds of precise fixture toolingsSmooth surface byShot-peeningPainting byAutomatic coating lineProducing leaf springs and casting parts byOurselves to ensure the lead time and quality are under controlEqualizer bushesUsing taper or greaseless powdered metal ones to be more durableArm bushesUsing natural rubber ones to be more durableAdjustable arms screw byGalvanized anti-rust treatmentSets of annual output50,000 Overseas market30 countries (Austraulia, Polland, Russia, Brazil, Mexico, Thailand, Malaysia, Singapore, Vietnam, The Philippines, Indonesia, Bolivia, Argentina, Chile, Peru, Guatemala, Panama, Egypt, South Africa, Nigeria, Tanzania, etc.)Clients (overseas)100 Land area (square meters)18,000 Number of equipments (sets)200 Employees120 Engineers12 Available certificatesCOC, PVOC, CIQ, SONCAP, C/O, FORM E, FORM A.Comprehensive Info of Suspensions:Suspension typesGerman series suspensions, American series suspensions, bogie/boogie suspension series, air suspension series, rigid suspension series, YORK suspensions, ROR suspensions, HENRED suspensions, semi-trailer suspensions, trailer suspensions and agricultural series, etc.Interchangeable brandsBPW suspensions, FUWA suspension, YORK suspensions, ROR suspensions, HENRED suspensions.ReplacementsFW880201A, FW880202A, FW880203A, FW880201B, FW880202B, FW880203B, FW880301A, FW880302A, FW880303A, FW880301B, FW880302B, FW880303B, FW860201A, FW860202A, FW860203A, FW860201B, FW860202B, FW860203B, FW860301A, FW860302A, FW860303A, FW860301B, FW860302B, FW860303B, FW86.2/1310/250/BQ6/9, FW86.2/1360/250/BQ6/9, FW86.3/1310/250/BQ6/9, FW86.3/1360/250/BQ6/9.Quantity of installed axles including1-axle suspensions, 2-axle suspensions, 3-axle suspensions, 4-axle suspensions, etc.Position of installed axles includingOverslung & underslung suspensionsType of installed axle beams includingSquare & round axle beam suspensionsHanger thickness6 mm, 8 mm, 10 mmEqualizer thickness8 mm, 10 mm, 12 mmEqualizer pin diameter50 mm, 60 mm, 70 mmAxis (torque arm pin) diameter28 mm, 36 mmArm bushesNatural rubber, composite bushings, urethane rubber, used rubber, etc.Leaf springs90x16x7 leaves, 90x16x9 leaves, 100x16x10 leaves, 100x12x12 leaves, 100x12x14 leaves, 100x14x12 leaves, 75x13x8 leaves, 75x13x9 leaves, 75x14x8 leaves, 75x14x9 leaves, etc.ColorsRed, black, grey, blue, etc.Optional parts/componentsFront hangers, rear hangers, center hangers, equalizers, equalizer pins, equalizer   bushes, brackets, axle seats, axises, bushes, leaf springs, U-bolts, bolts, fixed arms, adjustable arms, hanger spacers, reinforcing plates, reinforcing brackets for equalizers, etc.Package* 30 sets~35 sets of suspensions with leaf springs in one 20 ft container;* 60 sets~70 sets of suspensions without leaf spring in one 20 ft container;* Mixed load with other trailer parts.Standards implementedIATF 16949-2016, ISO 9001-2015.PaymentTT, LC, DP.Lead timeAbout 10~15 working daysMOQ1 set ParametersHeavy Duty Bogie Suspension Series:Low Mounting Plate Drum type   Bogie SuspensionItem No.Rated Load(kg)Weight    (kg)Bearing typeBrake Lining(mm)Track     (mm)Leaf    Spring(mm)Axle Space(mm)WBLD24－0124000185033213/33118Φ 420*20018709801400WBLD28－0128000232033215/32219Φ 420*20018709001550WBLD32－0132000232032314/32222Φ 420*20018709001550High Mounting Plate Drum type Bogie SuspensionItem No.Rated Load(kg)Weight  (kg)Bearing typeBrake Lining(mm)Track   (mm)Leaf  Spring(mm)Axle Space(mm)WBHD24－0124000185033213/33118Φ 420*20018409801400WBHD28－0128000232033215/32219Φ 420*20018409001550WBHD32－0132000232032314/32222Φ 420*20018409001550High Mounting Plate Spoke type Bogie SuspensionItem No.Rated Load(kg)Weight  (kg)Bearing typeBrake Lining(mm)Dual Spacing(mm)Leaf  Spring(mm)Axle Space(mm)WBHS24－0124000215033213/33118Φ 420*20018509801500WBHS28－0128000255033215/32219Φ 420*20019009001550WBHS32－0132000260032314/32222Φ 420*20019009001550Low Mounting Plate Spoke type   Bogie SuspensionItem No.Rated Load(kg)Weight    (kg)Bearing typeBrake Lining(mm)Dual Spaning(mm)Leaf    Spring(mm)Axle Space(mm)WBLS24－0124000210033213/33118Φ 420*20018709801400WBLS28－0128000238033215/32219Φ 420*20018709001550WBLS32－0132000238032314/32222Φ 420*20018709001550 ProductionWorkshops of WONDEE Autoparts semi trailer suspensions:(Raw material workshops, Components workshops, Mechanical suspension processing workshops, Semi trailer suspensionAssembly workshops, Painting line)Processes & equipment of WONDEE Autoparts semi trailer suspensions:(1. Steel Plate Material→ 2. Steel Plate CNC  Automatic Cutting→ 3. Hangers punching→ 4. Hangers Forming→ 5. Hangers Welding→ 6. Sleeve(A & B) Welding→ 7. Shot Peening→ 8. Painting→ 9. Laser marking→ 10. Assembling→ 11. Packing→ 12. Warehousing)Products and logistics of WONDEE Autoparts semi trailer suspensions:(Mechanical suspension final production, Suspension hangers, Components of semi trailer suspensions, Suspension warehousing, Suspension packing, trailer suspension container loading)Other types of WONDEE Autoparts semi trailer suspensions:(Germany BPW type mechanical suspension, Germany SAF type mechanical suspension, American FUWA type suspension with square beam, American FUWA underslung type suspension with square beam, American FUWA type suspension with round beam, American FUWA underslung type suspension with round beam)Other types of WONDEE Autoparts semi trailer suspensions:(YTE casting type suspension, ROR casting type suspension, Henred Fruehauf type suspension, Agricultural trailer suspension) ComponentsComponents & spare parts of WONDEE Autoparts semi trailer suspensions:(Font hangers, Middle hangers, Rear hangers, Supension equalizers, Equalizer pins, Leaf springs, Fix torques, Adjustable torques, U-bolts, etc.)Besides trailer mechanical suspensions, WONDEE Autoparts also supply different types of semi trailer components as below:
